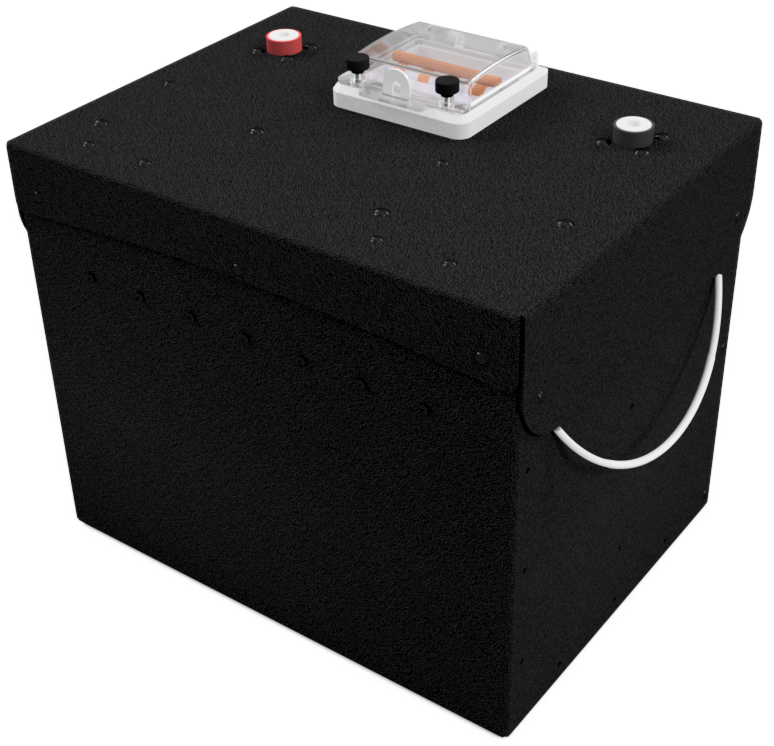

36V 110Ah Battery 160A with Circuit Breaker

https://www.lithiumbatterysystems.com.au/web/image/product.template/12234/image_1920?unique=b5fd900

$ 2,090.00 2090.0 AUD $ 2,090.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    NB: Unit price decreases at higher quantities: 5,10,20 etc (unless on sale).

    Body Construction

    Powder-coated aluminum enclosure

    Compact shape and size

    Designed and built in Australia

    BMS Features

    Temperature Protection

     Over/Under Voltage Protection

    Overcurrent Protection

    Connections

    Parallel-capable (Unlimited)

    M8 Thread Hole Terminals (Max. 80A)

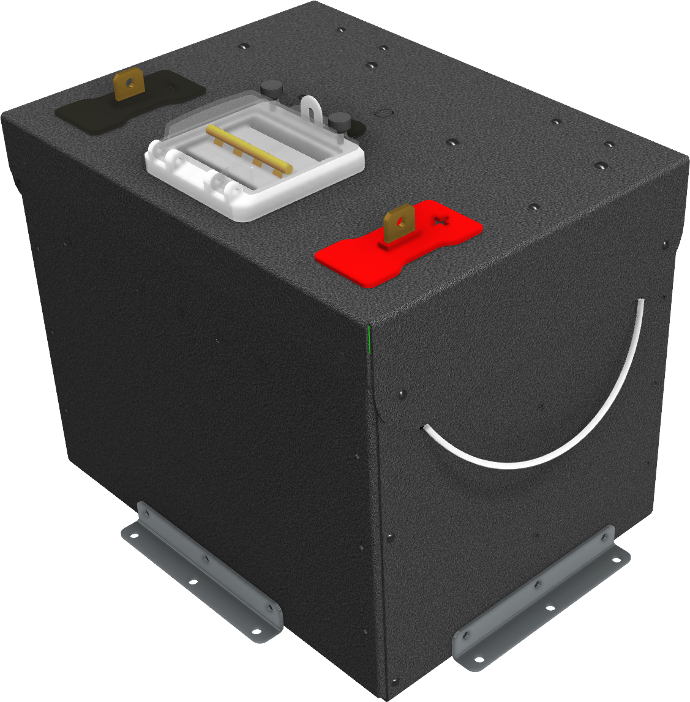

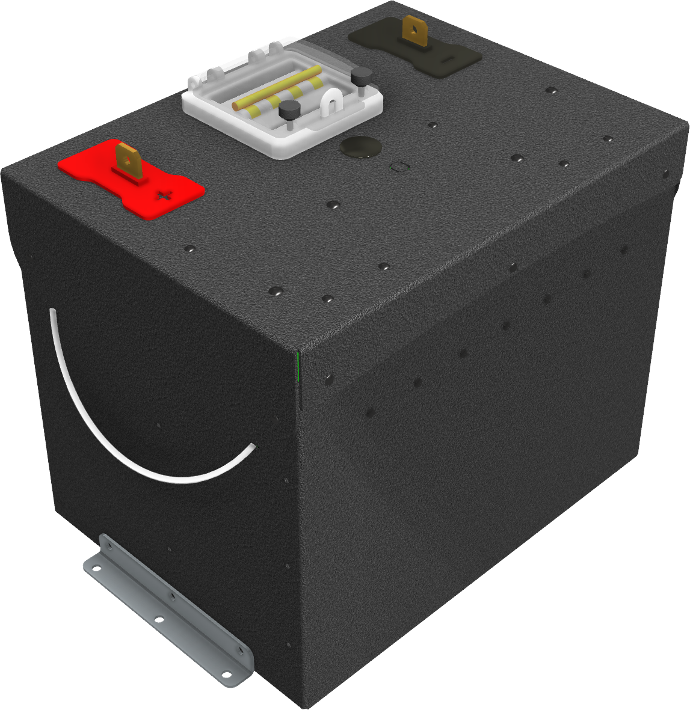

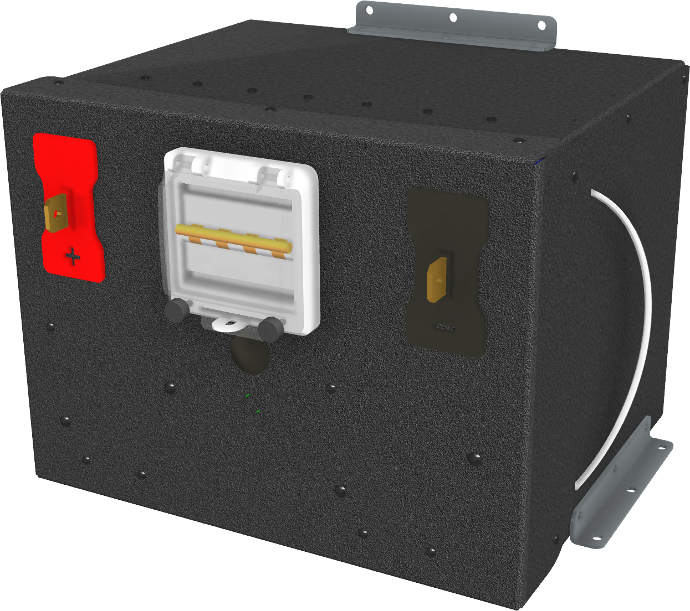

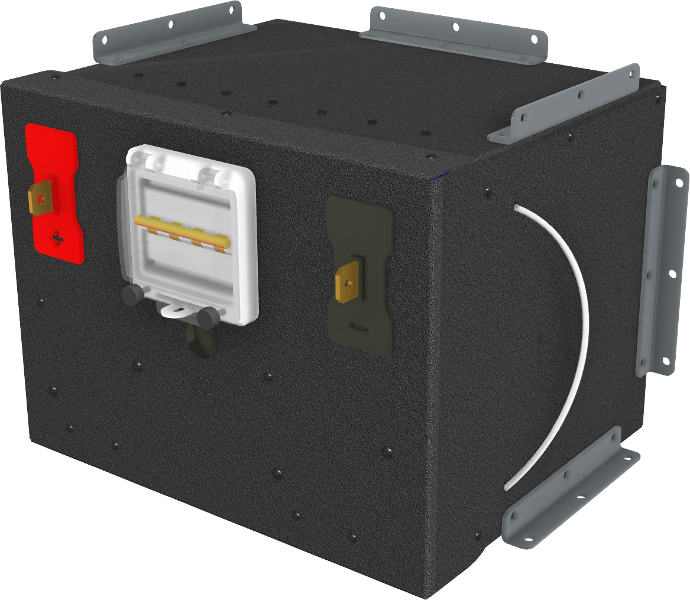

    Mounting Options

    Freedom to mount anywhere - Integrated mounting holes and the included mounting brackets allow the freedom to install in various orientations.


    Constructed using the latest lithium iron phosphate cells. These prismatic cells are the highest quality in a metal hard case. The battery is designed and developed in Australia and has an inbuilt Battery
    Management System (BMS).

    At just under 30 kg, the LBS-4875-MT80-CB is a high capacity 48V battery, perfect for electric vehicles where its power, capacity, and light weight add to the the performance of the vehicles.

    External circuit breakers mean that the battery can be turned off for installation, storage, maintenance or other reasons. The battery has high amperage M8 threaded terminals for robust electrical connections to the loads and chargers.

    The strong aluminium outer enclosure delivers a safe, lightweight and powerful unit which is the perfect power source for your 48V systems.

    Chemistry  ​ ​ ​ ​LiFePO4

    Nominal Voltage  ​ ​ ​48.0 V

    Nominal Capacity  ​ ​​​75 Ah

    Nominal Energy  ​ ​​3.6 kWh

    Input Charge Voltage ​  ​ ​51.8 V - 54.8 V
    ​ ​ ​ ​ ​ ​ ​ ​​52.5 V recommended

    100% SoC Voltage  ​ ​ ​51.8 V

    Low Voltage cut-off  ​ ​ ​40 V approx

    Charge Current  ​ ​ ​​70 A max

    Discharge Current  ​ ​​80 A max cont.
    ​ ​ ​ ​ ​ ​ ​ ​​240 A surge

    Weight  ​ ​ ​ ​ ​ ​​29.5 kg

    Packaged Weight  ​ ​​30 kg

    Life at 80% DoD  ​ ​​2000 cycles

    Life at 50% DoD  ​ ​​5000 cycles

    Parallel Capable  ​​​Yes

    Series Capable  ​ ​ ​ ​​No

    Size  ​ ​ ​ ​ ​ ​​L 338 mm
    ​ ​ ​ ​​D 257 mm
    ​ ​ ​ ​​H 303 mm

    Product Datasheet
