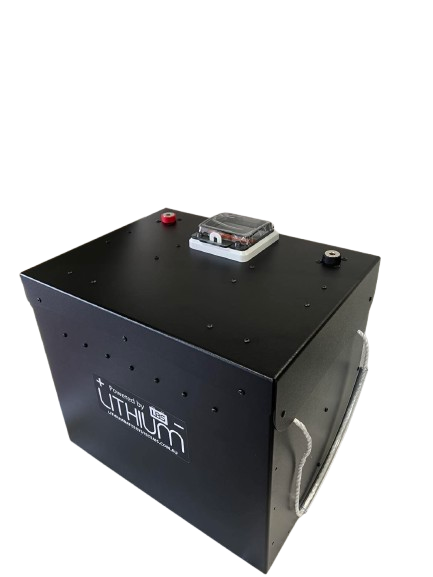

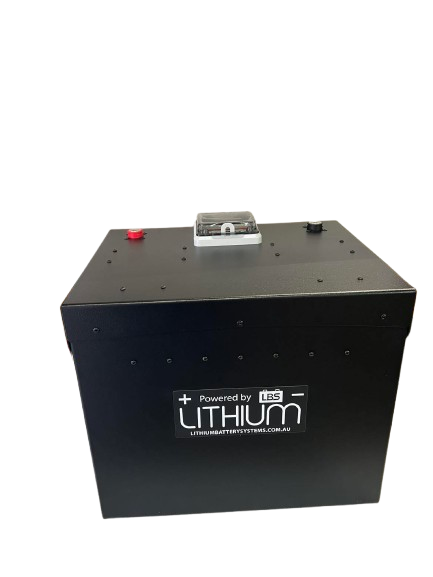

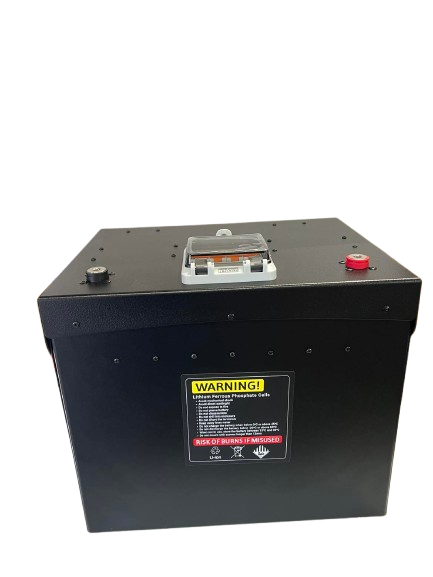

Constructed using the latest lithium iron phosphate cells. These prismatic cells are the highest quality in a metal hard case. The battery is designed and developed in Australia and has an inbuilt Battery
Management System (BMS).

At just under 42 kg, the LBS-24220-MT80-CB is a high capacity 24V battery, perfect for electric vehicles where its power, capacity, and light weight add to the the performance of the vehicles.

External circuit breakers mean that the battery can be turned off for installation, storage, maintenance or other reasons. The battery has high amperage M8 threaded terminals for robust electrical connections to the loads and chargers.

The strong aluminium outer enclosure delivers a safe, lightweight and powerful unit which is the perfect power source for your 24V systems.

Chemistry  ​ ​ ​ ​LiFePO4

Nominal Voltage  ​ ​ ​24.0 V

Nominal Capacity  ​ ​​​220 Ah

Nominal Energy  ​ ​​5.6 kWh

Input Charge Voltage ​27.6 V - 29.2 V
​ ​ ​ ​ ​ ​ ​ 28.0 V recommended

100% SoC Voltage  ​ ​ 27.6 V

Low Voltage cut-off  ​ ​21.5 V approx

Charge Current  ​ ​ ​​110 A max

Discharge Current  ​ 110 A max cont.
​ ​ ​ ​ ​ ​ ​ 220 A surge

Weight  ​ ​ ​ ​ ​ 41.5 kg

Packaged Weight  ​ ​​42.0 kg

Life at 80% DoD  ​ ​​2000 cycles

Life at 50% DoD  ​ ​​5000 cycles

Parallel Capable  ​​​Yes

Series Capable  ​ ​ ​ No

Size  ​ ​ ​ ​ ​ ​​L 360 mm
​ ​ ​ ​​D 277 mm
​ ​ ​ ​​H 333 mm
