12V 220Ah SlimLine Battery 240A

https://www.lithiumbatterysystems.com.au/web/image/product.template/12143/image_1920?unique=aecc486

240A continuous discharge current

$ 2,409.00 2409.0 AUD $ 2,409.00 Including GST

$ 2,190.00 Including GST

Not Available For Sale

    This combination does not exist.

    Contact Us

    NB: Unit price decreases at higher quantities: 5,10,20 etc (unless on sale).

    Body Construction

    Powder-coated aluminium enclosure

    Compact shape and size

    Designed and built in Australia

    BMS Features

    Temperature Protection

     Over/Under Voltage Protection

    Overcurrent Protection

    Short Circuit Protection

    Connections

    Parallel-capable (Unlimited)

    Series-capable (Max. 2)

    M8 Threaded Hole Terminals (Max. 240A)

    Mounting Options

    Freedom to mount anywhere - Integrated mounting holes and the included mounting brackets allow the freedom to install in various orientations.

    Constructed using the latest lithium iron phosphate cells - these prismatic cells are the highest quality in a metal hard case. The battery has an inbuilt Battery Management System (BMS) designed and developed in Australia.

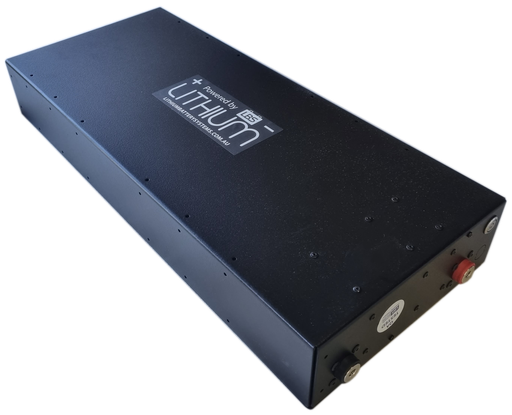

    At just under 23 kg, the unique slimline shape makes it the perfect battery for installations where space is a premium. Slide it behind a seat, bolt it to a wall or at the back of a cupboard.

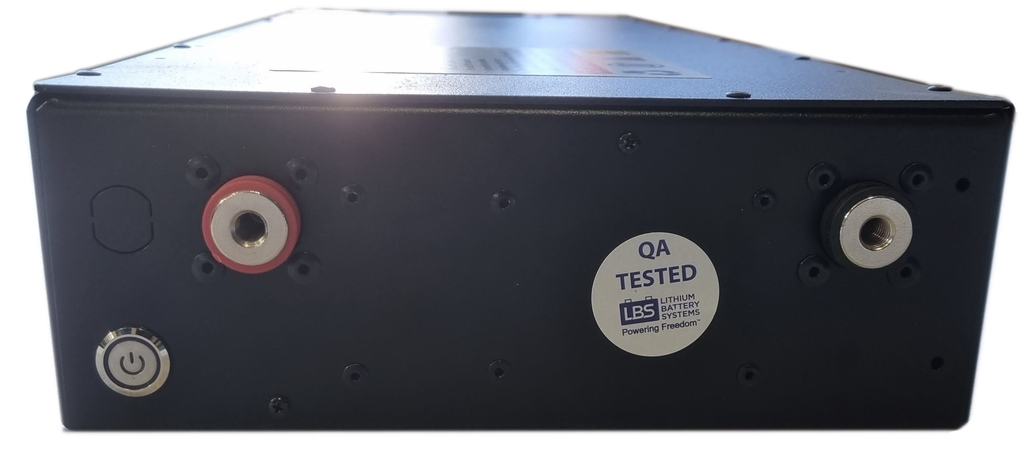

    The battery provides up to 240A of continuous discharge or can accept up to 140A of charge and can be used in parallel to increase capacity. Charge and discharge via the M8 threaded hole terminals

    The strong aluminium outer enclosure delivers a safe, lightweight and powerful unit which is the perfect building block for next generation battery systems

    Chemistry ​ ​LiFePO4

    Nominal Voltage ​ ​12 V

    Nominal Capacity ​​220 Ah

    Nominal Energy ​ ​2.7 kWh

    Input Charge Voltage ​​13.8 V - 14.6 V
    ​ ​ ​ ​​​ ​14.0 V recommended

    100% SoC Voltage ​ ​13.8 V

    Low Voltage cut-off ​​ ​ ​10.5 V approx

    Charge Current ​ ​​​140 A max

    Discharge Current ​ ​240 A max cont.
    ​ ​ ​ ​​​ ​480 A surge

    Weight ​ ​ ​​​22.6 kg

    Packaged Weight ​ ​23.2 kg

    Life at 80% DoD ​ ​2000 cycles

    Life at 50% DoD ​ ​5000 cycles

    Parallel Capable ​ Yes

    Series Capable ​ ​​​Yes (Max. 2 in series)

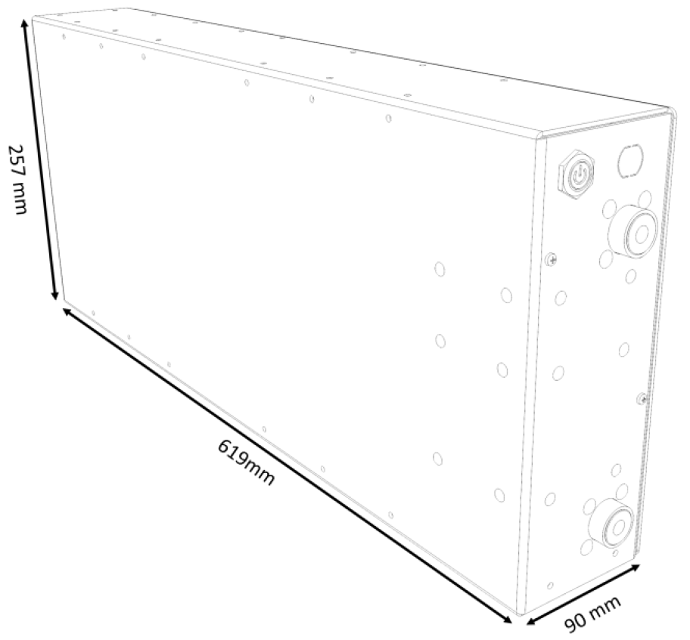

    Size ​ ​ ​ ​L 609 mm
    ​ ​ ​ ​ ​   ​ ​619 mm (inc. terminals/handles)
    ​ ​ ​ ​ ​ ​ ​ ​D ​257 mm
    ​ ​ ​ ​ ​ ​ ​​H ​​90 mm

    Product Datasheet
