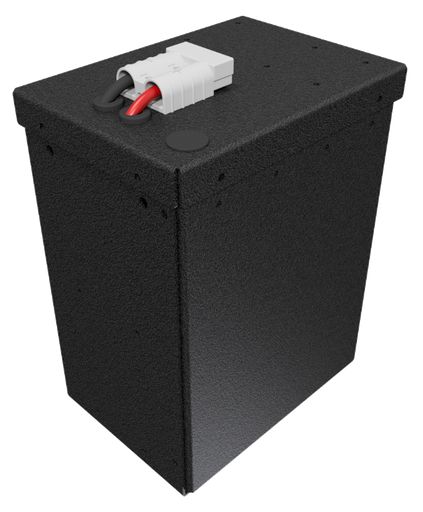

12V 110Ah Battery 100A

https://www.lithiumbatterysystems.com.au/web/image/product.template/11637/image_1920?unique=1545779

$ 859.00 859.0 AUD $ 859.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    NB: Unit price decreases at higher quantities: 5,10,20 etc (unless on sale).

    Constructed using the latest lithium iron phosphate cells. These prismatic cells are the highest quality in a metal hard case. The battery has an inbuilt Battery Management System (BMS) designed and developed in Australia.

    At just under 13 kg, the unique slimline shape makes it the perfect battery for installations where space is a premium. Slide it behind a seat, bolt it to a wall or at the back of a cupboard.

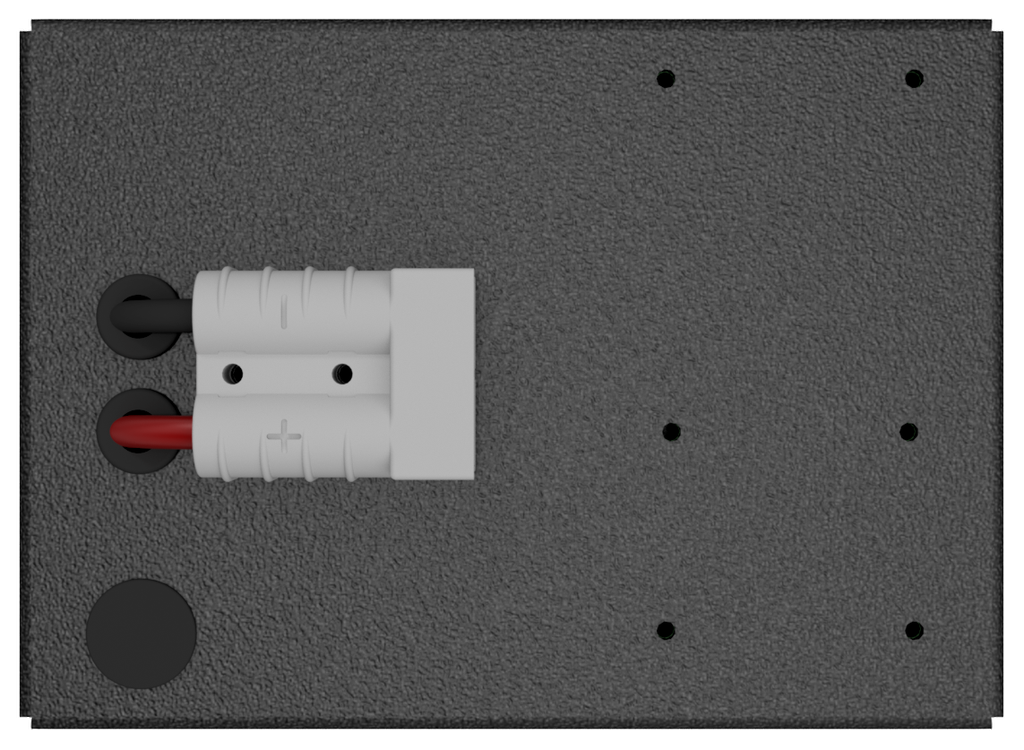

    The battery provides up to 100A of continuous discharge or charge and can be used in parallel to increase capacity. Charge and discharge via the grey Anderson plug.

    The strong aluminium outer enclosure delivers a safe, lightweight and powerful unit which is the perfect building block for next generation battery systems.

    Chemistry  ​ ​ ​ ​LiFePO4

    Nominal Voltage  ​ ​ ​12.0 V

    Nominal Capacity  ​ ​​110 Ah

    Nominal Energy  ​ ​​    ​1.32 kWh

    Input Charge Voltage ​  ​ ​13.8 V - 14.6 V
    ​ ​ ​ ​ ​ ​ ​ ​​14.0 V recommended

    100% SoC Voltage  ​ ​ ​13.8 V

    Low Voltage cut-off  ​ ​ ​10.5 V approx

    Charge Current  ​ ​ ​​ ​ ​100 A max

    Discharge Current  ​ ​​100 A max cont.
    ​ ​ ​ ​ ​ ​ ​ ​​240 A surge

    Weight  ​ ​ ​ ​ ​ ​​11.0 kg

    Packaged Weight  ​ ​​11.4 kg

    Life at 80% DoD  ​ ​​ ​ ​2000 cycles

    Life at 50% DoD  ​ ​​ ​ ​5000 cycles

    Parallel Capable  ​​​ ​ ​Yes

    Series Capable  ​ ​ ​ ​​Yes (Max. 2 in series)

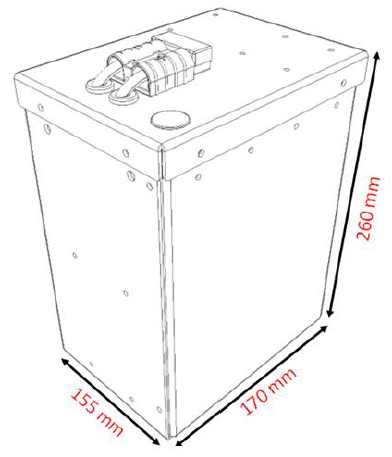

    Size  ​ ​ ​ ​ ​ ​​L 170 mm
    ​ ​ ​ ​​D 155 mm
    ​ ​ ​ ​​H 277 mm (Incl. Terminal)


    Product Datasheet
