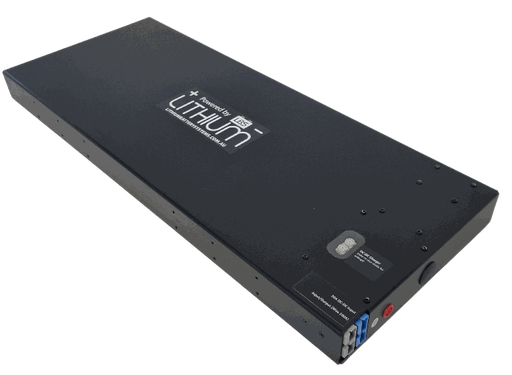

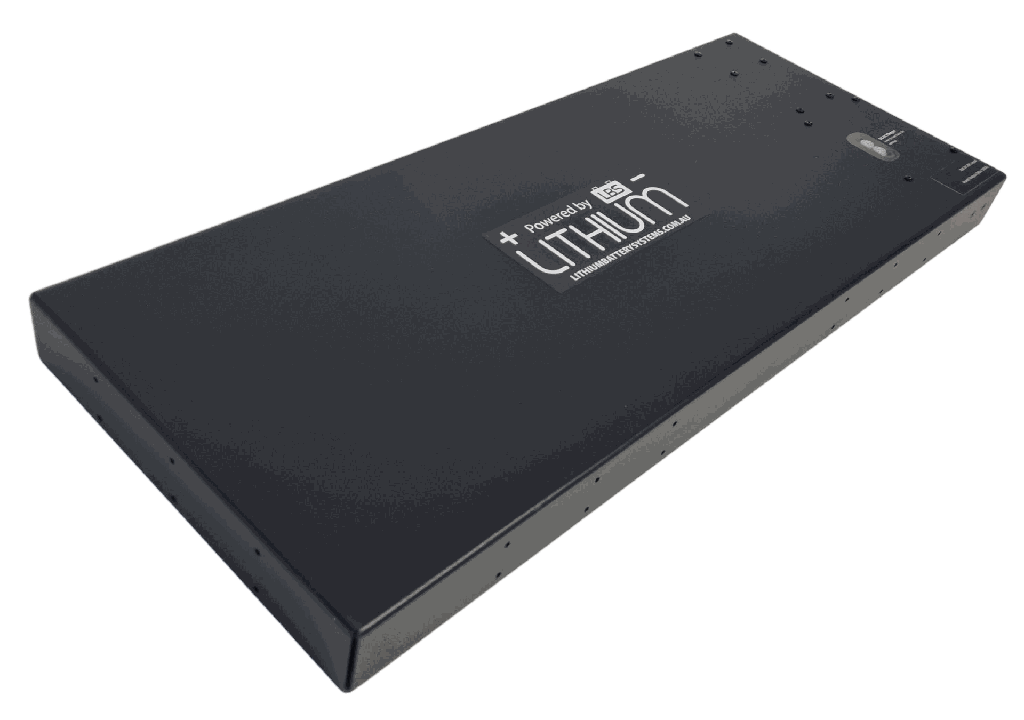

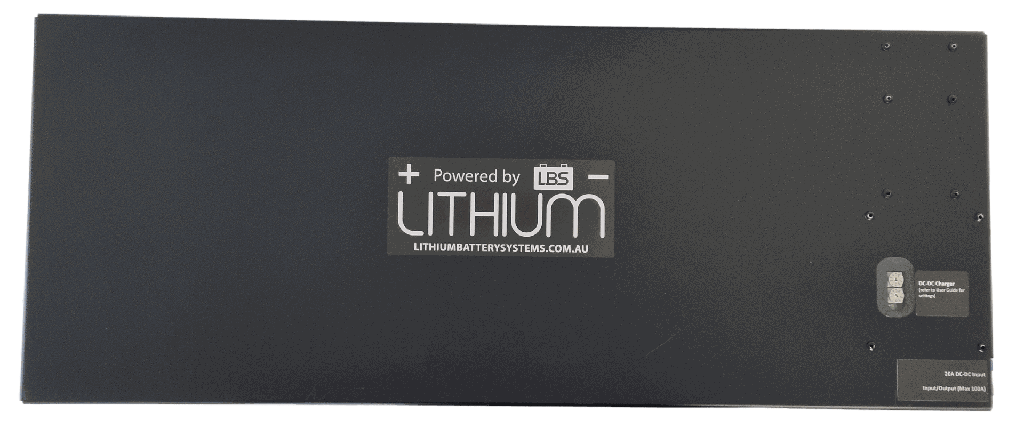

Constructed using the latest lithium iron phosphate cells. These prismatic cells are the highest quality in a metal hard case. The battery has an inbuilt Battery Management System (BMS) designed and developed in Australia.

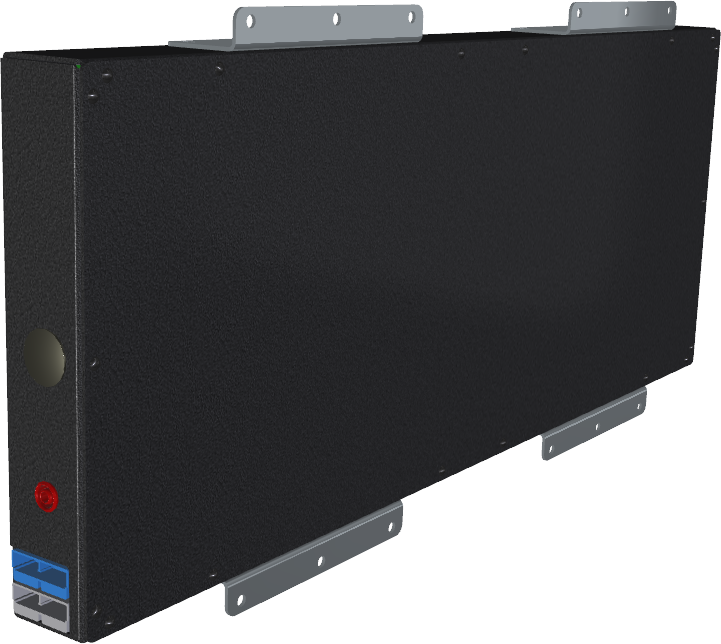

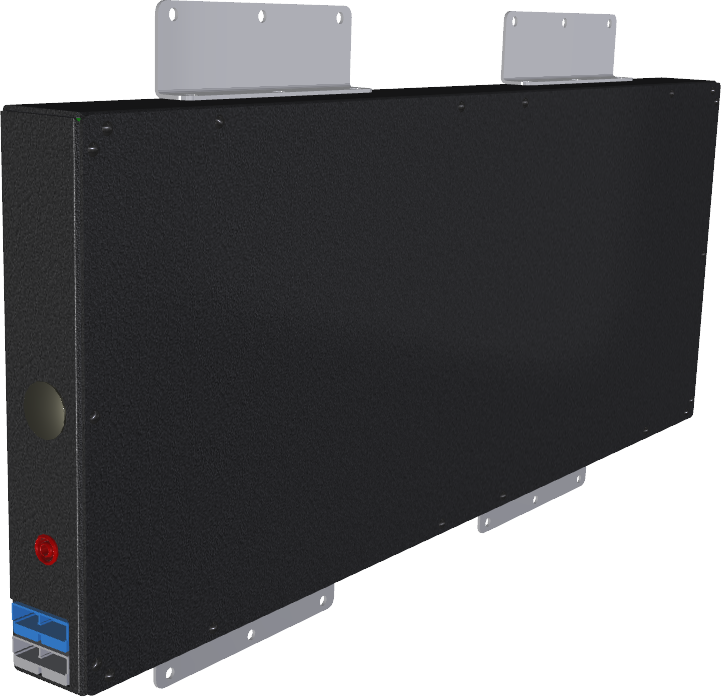

At just under 13 kg, the unique slimline shape makes it the perfect battery for installations where space is a premium. Slide it behind a seat, bolt it to a wall or at the back of a cupboard.

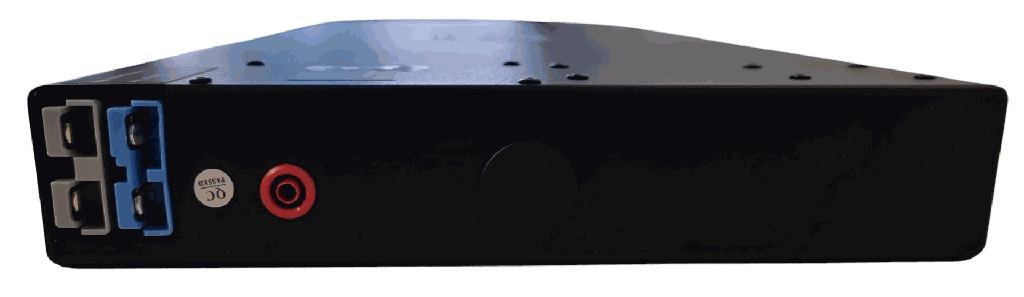

The battery provides up to 120A of continuous discharge or charge and can be used in parallel to increase capacity. Charge and discharge via the grey Anderson plug or charge from a DC source via the blue Anderson plug.

The strong aluminium outer enclosure delivers a safe, lightweight and powerful unit which is the perfect building block for next generation battery systems.

Chemistry  ​ ​​LiFePO4

Nominal Voltage  ​ ​​​12 V

Nominal Capacity ​  ​ ​​110 Ah

Nominal Energy  ​ ​ ​​1.3 kWh

Charge Voltage ​​ ​​13.8 V - 14.6 V
​ ​ ​ ​ ​ ​ ​ ​​ ​14.0 V recommended

DC-DC Input ​​ ​ ​​10-16 V, 20 A

100% SoC Voltage  ​ ​​13.8 V

Low Voltage cut-off  ​ ​​​10.5 V approx

Charge Current  ​ ​ ​​​ ​120 A max

Discharge Current  ​ ​ ​120 A max cont.
​ ​ ​ ​ ​ ​ ​ ​​ ​240 A surge

Weight  ​ ​ ​ ​ ​ ​12.9 kg

Packaged Weight  ​ ​​ ​13.3 kg

Life at 80% DoD  ​ ​​​ ​2000 cycles

Life at 50% DoD  ​ ​​​ ​5000 cycles

Parallel Capable  ​​​​ ​Yes

Series Capable  ​ ​ ​ ​Yes (Max. 2 in series)

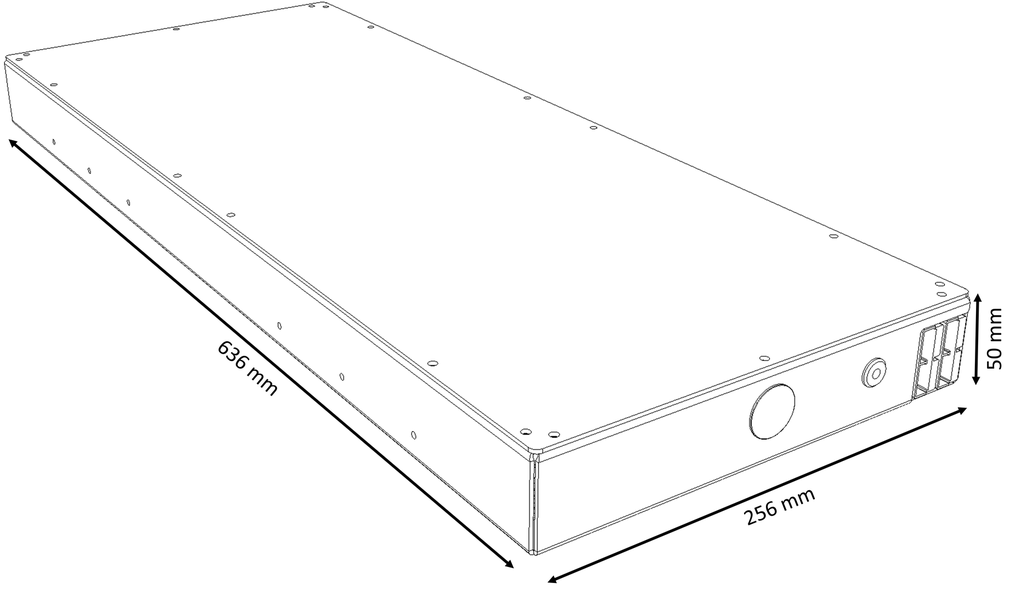

Size  ​ ​ ​ ​ ​ ​​ ​L 636 mm
​ ​ ​ ​​​ ​D 256 mm
​ ​ ​ ​​​ ​H 50 mm
