Control Module 2: 40A DC-DC Charger & 100A Solar Charger with Bluetooth Monitoring

https://www.lithiumbatterysystems.com.au/web/image/product.template/11803/image_1920?unique=0c90e63

$ 4,154.70 4154.7 AUD $ 4,154.70 Including GST

$ 3,777.00 Including GST

Not Available For Sale

    This combination does not exist.

    Contact Us

    NB: Unit price decreases at higher quantities: 5,10,20 etc (unless on sale).

    Body Construction

    Powder-coated aluminium enclosure

    Compact shape and size

    Designed and built in Australia

    Features

    2x 50A Solar MPPT

    40A DC-DC Charger

    Remote Monitoring with Bluetooth
    (Remote screen must be installed)

    Connections

    3x Grey Anderson (50A output each)

    1x Blue Anderson (40A DC-DC Charger Input)

    2x Red Anderson (Up to 100V Solar MPPT Input)

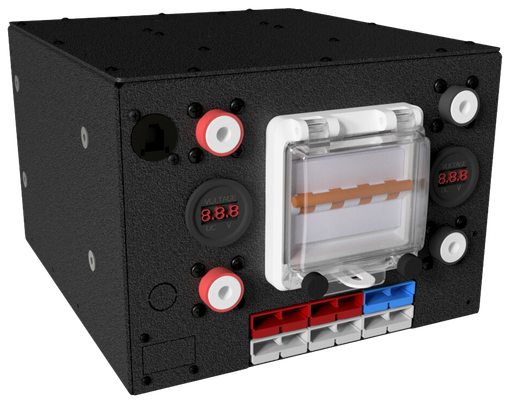

    The LBS Control Module is an all-in-one charging and power distribution solution, featuring a 40A DC-DC charger, 2x 50A MPPT solar chargers (100A total) and multiple outputs in a small, convenient aluminium enclosure. The small footprint and pre-wired chargers, make it simple to create your very own lithium power solution for a caravan, ute or even a small off-grid home.

    The 40A DC-DC charger has been designed and developed in-house by our engineering team, right here in Brisbane, QLD. The 2x 50A Solar MPPT chargers and Remote Monitoring with Bluetooth are sourced from Victron, a recognised and seasoned manufacturer based in the Netherlands. The combination of these quality components, as well as final assembly right here in Australia, ensures a quality, robust solution.

    Additional features include separated input and output M8 threaded hole terminals, 3x Anderson Input/Outputs, DC-DC input/vehicle voltmeter, lithium battery voltmeter and separate circuit breakers for the DC-DC charger, Solar charger and Grey Anderson Input/Outputs.

    The unit has been designed to work seamlessly with our SLX or SLT series of lithium batteries; however you can use any lithium battery system with the LBS Control Module.


    DC-DC charger ​ ​​10-16V, 40A

    Solar MPPT ​ ​ ​ ​19-100V, 50A x2 (100A total)

    Terminals ​ ​ ​​M8 threaded hole

    Remote Monitoring ​ ​Yes, with bluteooth. Victron BMV-712. (Remote screen must be installed)

    DC-DC input voltmeter ​ ​Yes

    Battery output voltmeter ​ ​Yes

    Circuit Brekaers ​ ​​ ​ ​Solar Output
    ​ ​ ​ ​ ​DC-DC Input
    ​ ​ ​ ​ ​ ​Grey Anderson Input/Outputs


    Product Datasheet
